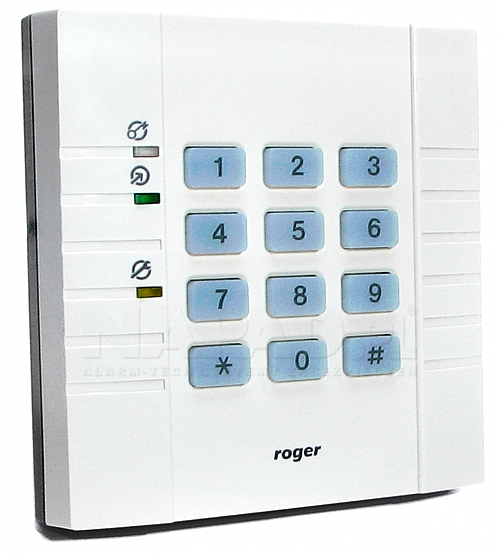

PR302 Access Controller

Features

• power supply 10-15 VDC
• average current consumption 80 mA
• built-in EM 125 kHz reader
• reading distance up to 12 cm
• connection of one external reader (two way door control)
• support for Wiegand, Magstripe, PRT (Roger) readers and others
• three programmable NO/NC inputs
• two programmable 1 A transistor outputs
• one programmable 1.5 A relay output
• RS485 communication bus
• free topology of communication bus (star or tree topology allowed)
• 4000 users
• 99 time schedules
• 250 user groups
• built-in 32 000 event buffer
• local APB
• global APB (requires CPR32-SE in the system)
• global Alarm Zones (requires CPR32-SE in the system)
• operation with XM-2 I/O extension module
• 32 floor lift control (requires XM-8 I/O extension module)
• integration with burglary system through I/Os
• building automation through I/Os
• door operating modes: Normal, Locked, Unlocked, Conditional Unlocked
• user identification: Card or PIN, Card and PIN, Card only, PIN only
• two Persons, High Security and other advanced access options
• quick user editing (less than 5 seconds per each controller in system)
• management through Ethernet (LAN/WAN), USB or COM
• system can be divided into separate branches (networks, subsystems)
• multiple networks doesn’t increase system programming time
• tamper
• dimensions: 105.0 x 104.0 x 32.0 mm (height x width x thickness)
• weight: ≈140.0 g
• CE mark
• environmental conditions of operation:
  • temperature from +5°C to +40°C
  • humidity from 10% to 95%
