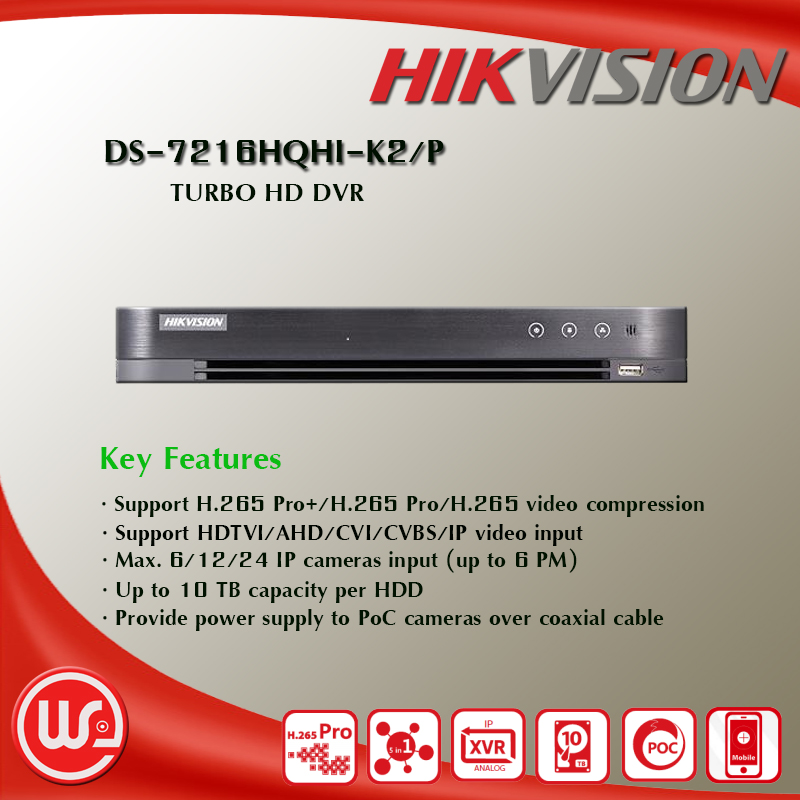

DS-7216HQHI-K2/P

DS-7216HQHI-K2/P
Turbo HD DVR
• Support H.265 Pro+/H.265 Pro/H.265 video compression

• Support HDTVI/AHD/CVI/CVBS/IP video input

•Max. 6/12/24 IP cameras input (up to 6 MP)

• Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission

• Up to 10 TB capacity per HDD

• Provide power supply to PoC cameras over coaxial cable

Video/Audio Input
Audio Input:
1-ch
Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input:
16-ch
Supported camera types:
Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2 of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P..
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Supports Hikvision PoC camera
*: PoC access capability see Appendix.
IP Video Input:
up to 24-ch
Video Input Interface:
BNC (1.0 Vp-p, 75Ω)
IP Video Input Resolution:
Up to 6 MP resolution
Two-way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input)
Video/Audio Output
Video output:
1-ch, BNC(1.0Vp-p, 75Ω)
HDMI/VGA Output:
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution:
When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p @15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Synchronous Playback:
16-ch
Network management
Remote connections:
128
Network protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Hard Disk Driver
Interface Type:
2 SATA Interfaces
Capacity:
Up to 10 TB capacity for each disk
General
Consumption:
≤ 120 W
Working Temperature:
-10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity:
10% to 90%
Dimensions:
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:
≤ 2 kg (4.4 lb)
